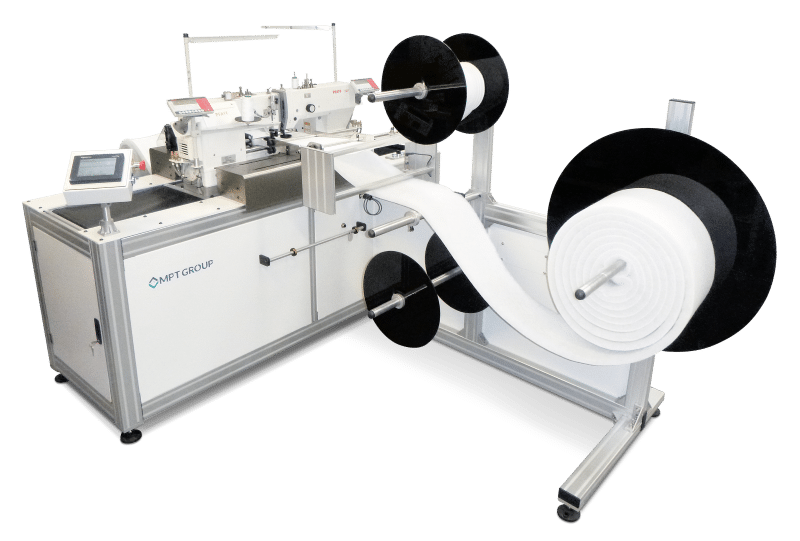

BORDATAC S2

Simulated Side Stitching Machine

MPT Group will be launching its all new BordaTac S2 mattress side stitching machine. This all new simulated side stitching machine will offer the very best hand stitched border effect on the market today.
BordaTac S2 will also offer increased border widths up to 17” a remarkable 4” wider than current available technology offers.

DOWNLOAD BROCHURE

Key Features

Border widths 7” to 17”
2 or 4 head configurations available
Pfaff heads with swinging needle technology
Suitable for both mattress and base borders
2,3,4,6,8 tack configurations
Automated tack position
Modular design allows the integration of serging heads
Full servo control means increased production speed and accuracy

TECHNICAL DATA

Border widths 7” to 17”
2 or 4 head configurations available
Pfaff heads with swinging needle technology
Suitable for both mattress and base borders
2,3,4,6,8 tack configurations
Automated tack position
Modular design allows the integration of serging heads
Full servo control means increased production speed and accuracy
Pendulum Needle Bar
Pendulum Needle BarSingle-thread chain stitch (seam type 101)
Integrated Sewing Drive
18 mm Lifting Clamp
46mm Needle Bar Stoke
Needle Type 190K
Power supply: 230 V (50/60 Hz)
Voltage 415 3phase + N
Working air pressure: 6 bar / 80 psi
Maximum Material Widths 17”
Minimum Material Width 5”
Tack Configurations 2 – 10 dependent on border width
