Mattress Border Quilting Machine

BordaMark border quilting machinery by MPT Group

Computer Controlled Mattress Border Mark and Cut Machine

This computer-controlled mattress border mark and cut machine combines four important mattress border production operations into one simple procedure.

BordaMark automatically marks the mattress border for later attachment of mattress handles, marks for the venting operation, measures the material to the required length and finally cuts the finished border – all in one pre-programmed operation.

The BordaMark mattress border machine marks on the reverse edge to accommodate both horizontal and vertical handles and there is the facility to select the marking of either mattress handles or vents, or both simultaneously.

The stretch compensation factor control allows for varying degrees of stretch in the material and there is a slow-motion mode for material width adjustment procedure following size change or material changeover.

The BordaMark has a sewing speed of 3-5 metres per minute and mattress border widths up to 500mm. The stitch length can also be adjusted electronically, and the machine includes a material run-out monitoring system and extensive memory for mattress border programmes.

In terms of its cutting function, the BordaMark has a high-speed rotary knife and ergonomic sharpening mechanism, the pneumatic roller opening allows for easy loading and the enclosed cutting area comes with a safety sensor.

Multi-functional and packed with features, the BordaMark mattress border machine is a must-have for any mattress manufacturing business.

MPT Group’s mattress machinery range covers every aspect of the mattress manufacturing process, from mattress quilting services, mattress border quilting equipment and mattress spring unit machinery, through to mattress role packing machines.

All of our mattress machinery is designed to respond to the rising consumer demand for more technologically advanced mattresses and with the needs of the client in mind, so that your mattress production operations are fast, efficient and reliable.

REQUEST PRICING

Maximum material weight 280 grammes
Massive memory for border programmes
Input facility for size and quantity
Material run-out monitoring system
Stretch compensation factor control allows for varying degrees of stretch in the material because the filling thickness or material type
Border widths from 75mm – 500mm
Electrics: 415v, 3P+N – 16Amp, 50/60 Hertz.
Air Pressure: 60-90 PSI

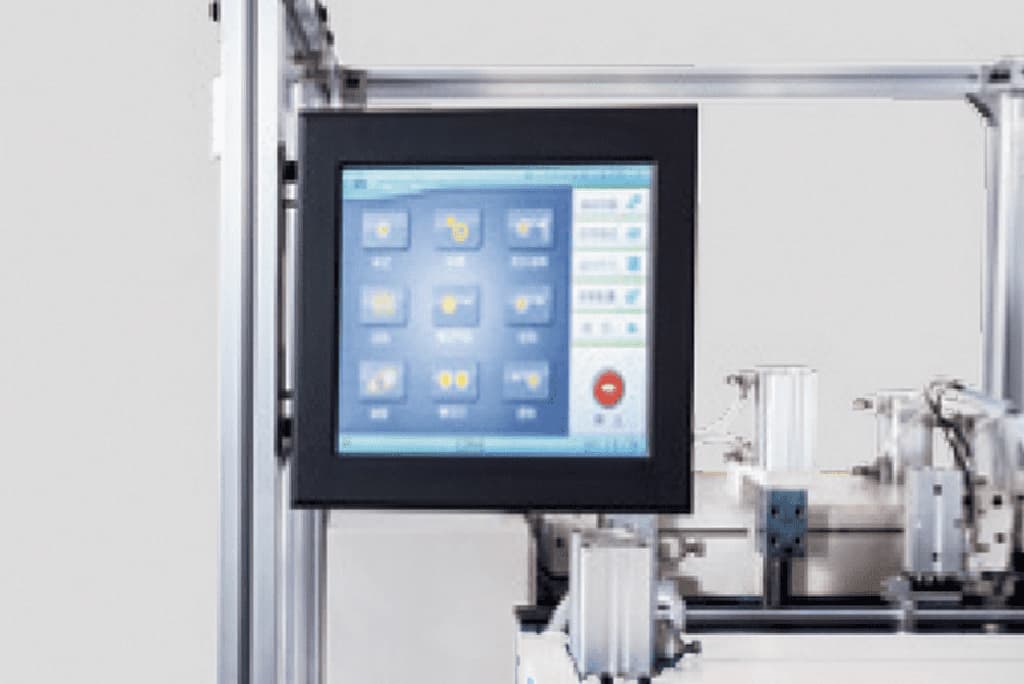

Controls

Marks on the reverse edge to accommodate both horizontal and vertical handles
Selectable facility for the marking of handles or vents, or alternatively both simultaneously
Electronic stitch length adjustment
Slow motion mode for material width adjustment procedure following size change or material changeover
Sewing speed 3-5m per minute
Total power 750kW
Power supply 220V 50Hz
